Dual 12-13 Inch 180w Electric Fans Radiator In-Hose Ground Switch Wiring Kit

SKU:
Availability : In Stock Pre order Out of stock

Electric Fan: Universal high performance 12-13 inch electric radiator cooling fans. Upgraded 180 watt motors draw 13 amps,...

$159.95

Hose Adapter Size: Choose an option

26mm / 1 Inch
28mm
30mm
32mm / 1.25 Inch
34mm
36mm
38mm / 1.5 Inch
40mm
42mm
44mm / 1.75 Inch
46mm
48mm
50mm / 2 Inch

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

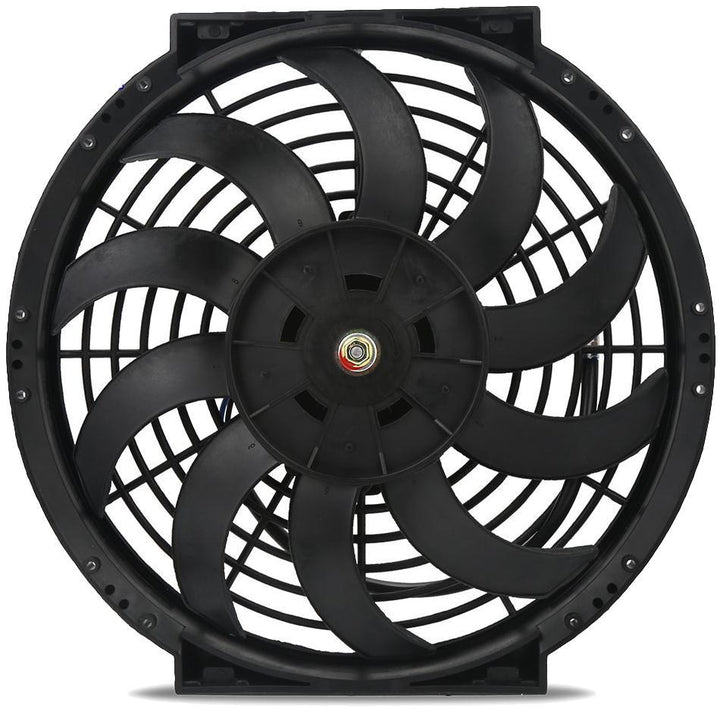

Electric Fan:

  • Universal high performance 12-13 inch electric radiator cooling fans.
  • Upgraded 180 watt motors draw 13 amps, producing 2764 CFM each.
  • Pre-configured as air pullers by default and reversible to air pushers.
  • Includes mounting bracket feet and complete cooler fin tie strap kit.
  • Each measure 12.5" x 11.75" x 4" thickness at center and 1.8" at edge.

Wiring Kits:

  • Universal automotive 12v electric fan switch relay wire harnesses.
  • Safely powers one cooling fan or auto accessory without splicing.
  • Maximum continuous draw with 40 amp circuit breaker protection.
  • Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.
  • Installation wiring diagram and all pictured components included.

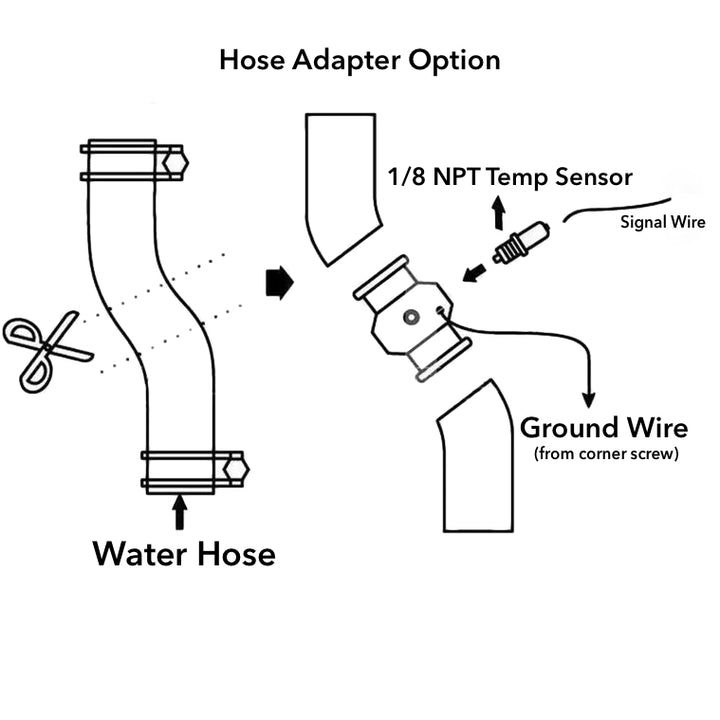

Hose Adapter:

  • Universal radiator hose electric fan thermostat temperature sensor.
  • Anodized aluminum in-line fitting adapter in various diameter sizes.
  • Preset to ground fan or 12v accessory at the selected temperature.
  • Single pin 1/8" inch NPT brass thread-in probe grounding switch.
  • Measures temp of any liquid including oil, water and coolant fluid.
