Dual 12-13 Inch 90w Electric Engine Cooling Fan Thermostat Temp Switch Kit

SKU:
Availability : In Stock Pre order Out of stock

Electric Fan: Universal 12 volt performance 12" inch electric radiator cooling fan. Upgraded 90 watt motor draws 9...

$99.95

Probe Size: Choose an option

1/8" NPT
1/4" NPT
3/8" NPT
1/2" NPT

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

Electric Fan:

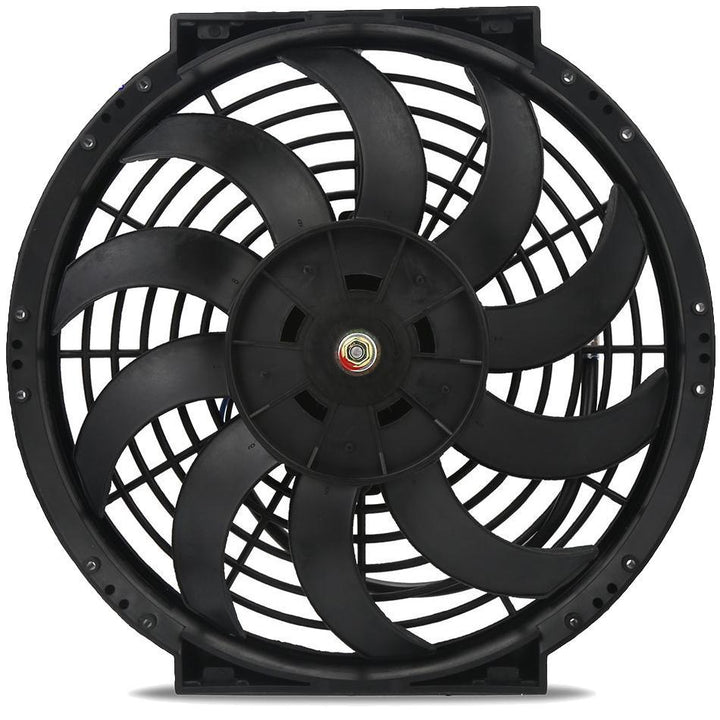

  • Universal 12 volt performance 12" inch electric radiator cooling fan.
  • Upgraded 90 watt motor draws 9 amps, producing over 2197 CFM.
  • Configured as an air puller by default or reversible to an air pusher.

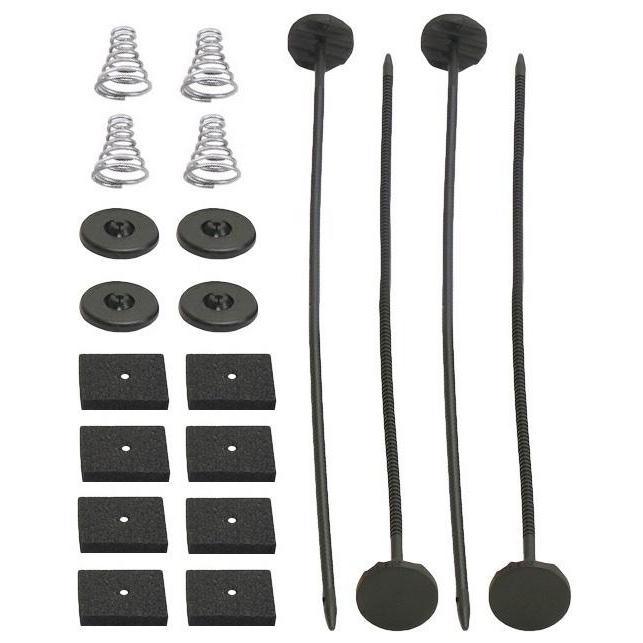

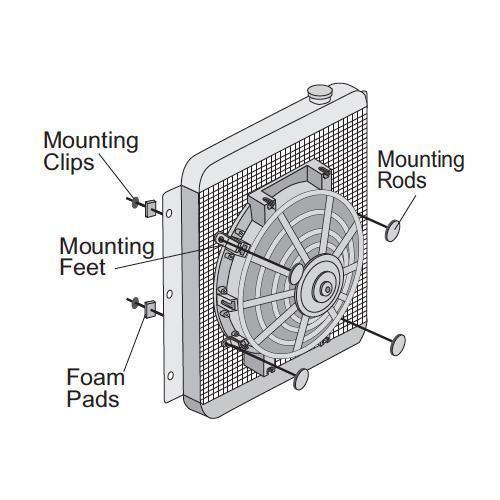

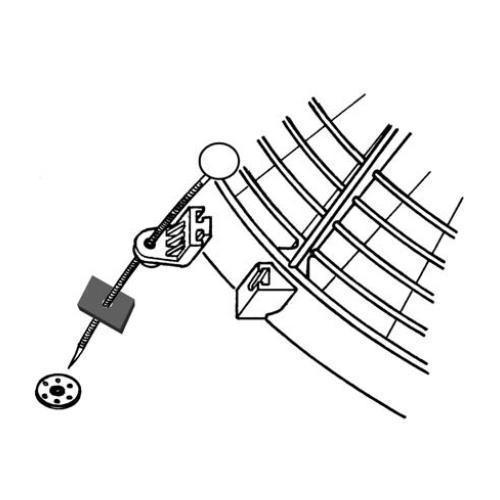

  • Includes mounting bracket feet and complete cooler fin tie strap kit.
  • Measures 12.5" x 11.75" x 2.5" thickness at center and 1.5" at edge.

Wiring Kit:

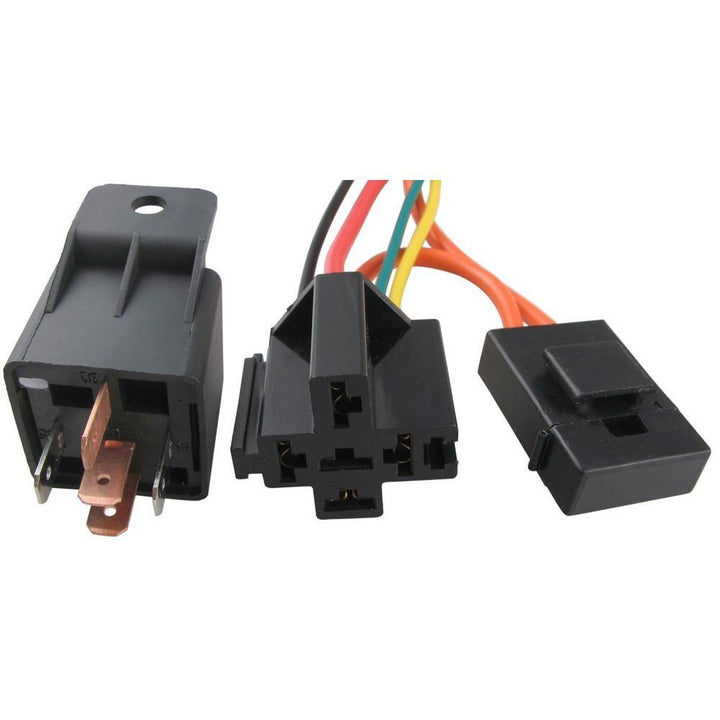

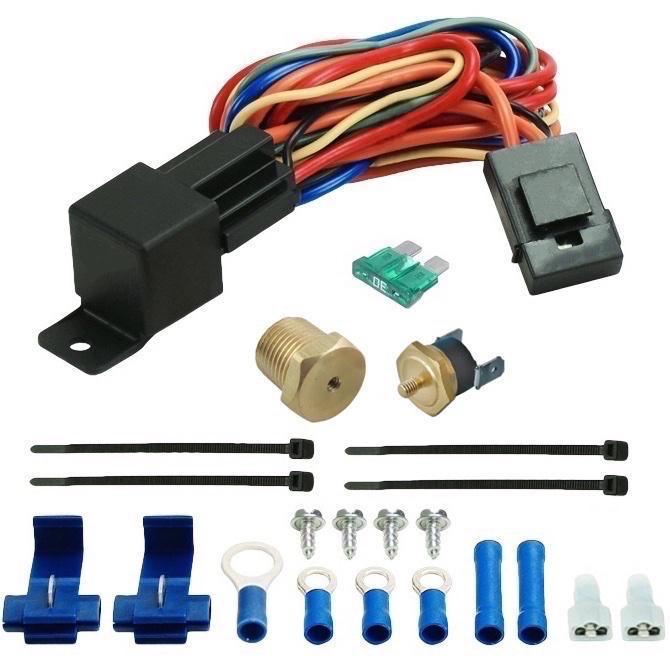

  • Universal automotive electric fan 5-pin 40A relay switch harness kit.
  • 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
  • Maximum 30 amp continuous draw with 30A in-line fuse protection.
  • A/C override or manual toggle switch wire built directly into harness.
  • Installation instructions, wiring diagram and components included.

Thermostat:

  • Universal dual pin electric cooling fan powering thermostat switch.
  • Standard NPT sized solid brass thread-in temperature probe sensor.
  • Preset to power fan or 12v accessory at the selected temperature.
  • Threads into block port, radiator, engine cooler or tapped hose line.
  • Measures temp of any liquid including oil, water and coolant fluid.
