Description

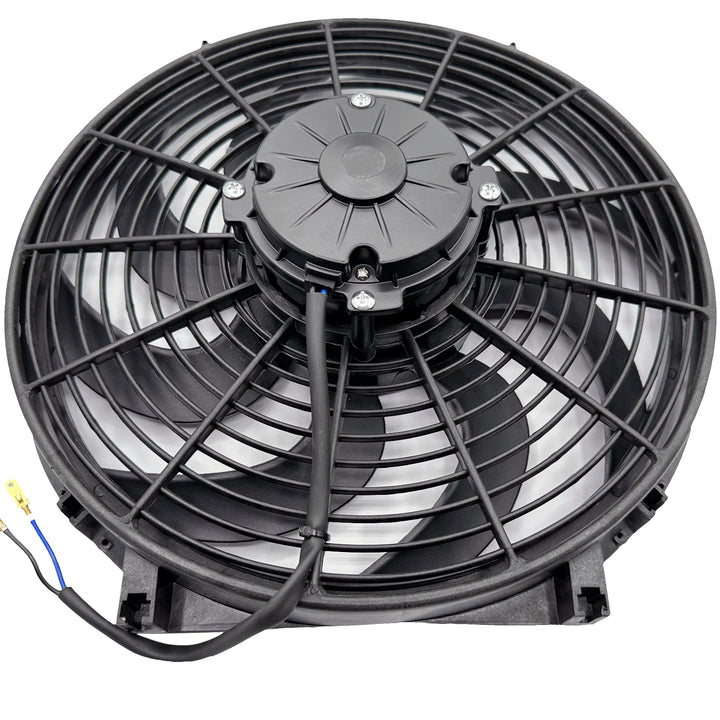

Electric Fan:
- 12 volt high performance 14-15 inch electric radiator cooling fan.
- Upgraded 180 watt motor draws 14 amps producing 2964 CFM.
- Configured as air puller by default or reversible to an air pusher.
- Includes mounting bracket feet and complete cooler tie strap kit.
- Measures 15" x 14" x 4" thickness at center and slim 1.8" at edge.

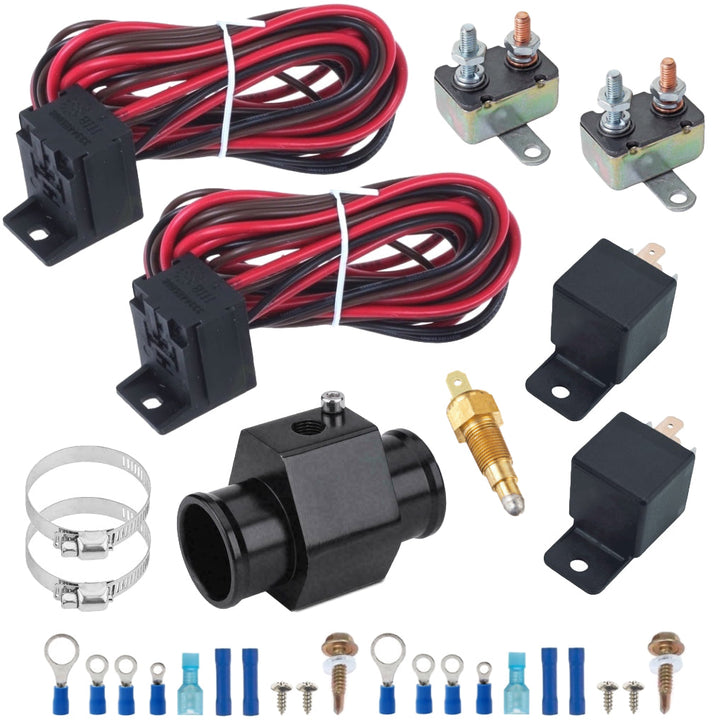

Wiring Kits:
- Universal automotive 12v electric fan switch relay wire harnesses.
- Safely powers one cooling fan or auto accessory without splicing.
- Maximum continuous draw with 40 amp circuit breaker protection.
- Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.
- Installation wiring diagram and all pictured components included.
Fitting:
- Universal radiator hose electric fan thermostat temperature sensor.
- Anodized aluminum in-line fitting adapter in various diameter sizes.
- Preset to ground fan or 12v accessory at the selected temperature.
- Single pin 1/8" inch NPT brass thread-in probe grounding switch.
- Measures temp of any liquid including oil, water and coolant fluid.
