Dual 7-8 Inch Electric Cooling Fans Push-In Probe Thermostat Switch

SKU:
Availability : In Stock Pre order Out of stock

Each Electric Fan: Reversible 12 volt high performance 7-8 inch electric cooling fan. Upgraded 90 watt motor draws 7.5...

$79.95

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

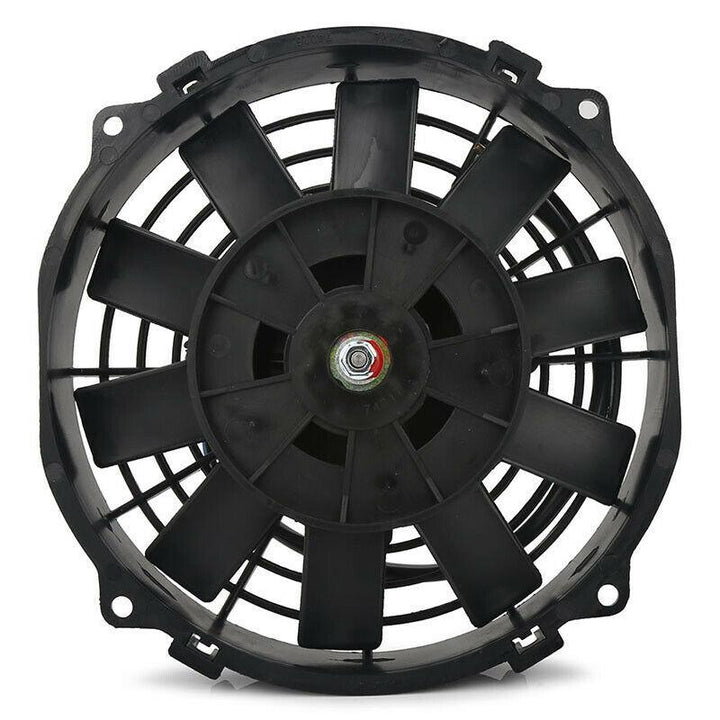

Each Electric Fan:

  • Reversible 12 volt high performance 7-8 inch electric cooling fan.
  • Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
  • Configured as air puller by default and reversible to an air pusher.

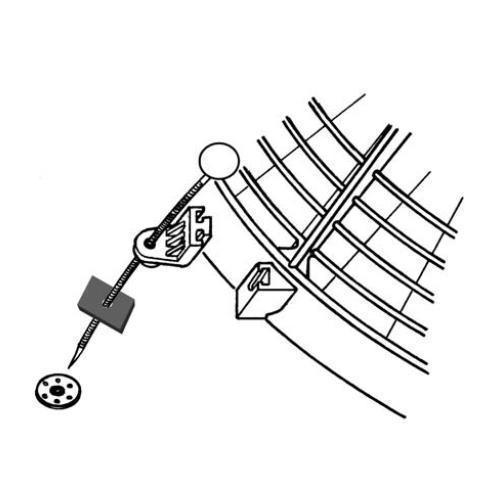

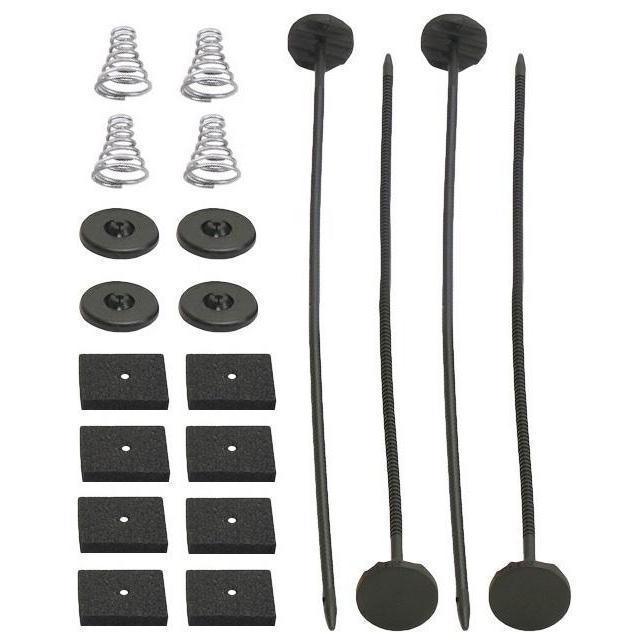

  • Includes mounting bracket feet and complete install fin tie strap kit.
  • Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

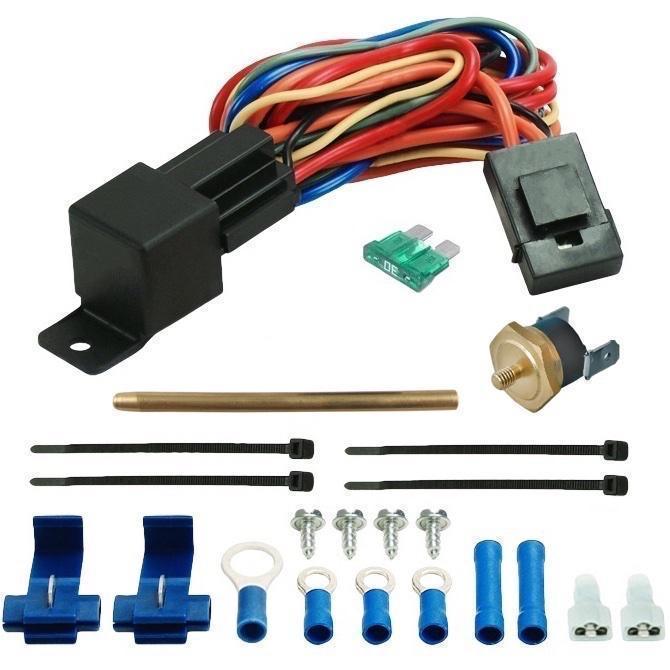

    Wiring Kit:

    • Universal automotive electric fan 5-pin 40A relay switch harness kit.
    • 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
    • Maximum 30 amp continuous draw with 30A in-line fuse protection.
    • A/C override or manual toggle switch wire built directly into harness.
    • Installation instructions, wiring diagram and components included.

    Thermostat:

    • Universal dual pin electric cooling fan powering thermostat switch.
    • Solid brass push-in fin probe temperature sensor can be cut to size.
    • Preset to power fan or 12v accessory at the selected temperature.

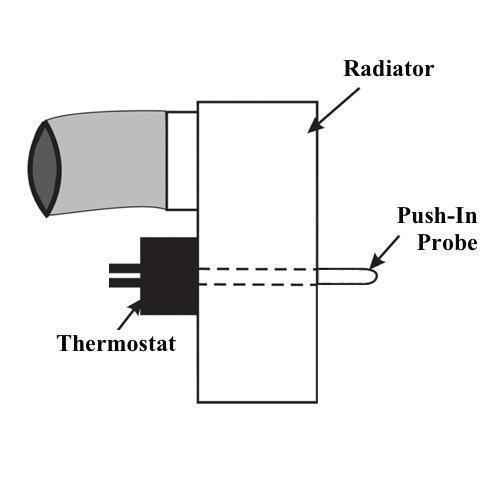

    • Probe pins the switch to radiator, engine or transmission cooler fins.
    • Measures temp of auto liquids including oil, water and coolant fluid.
