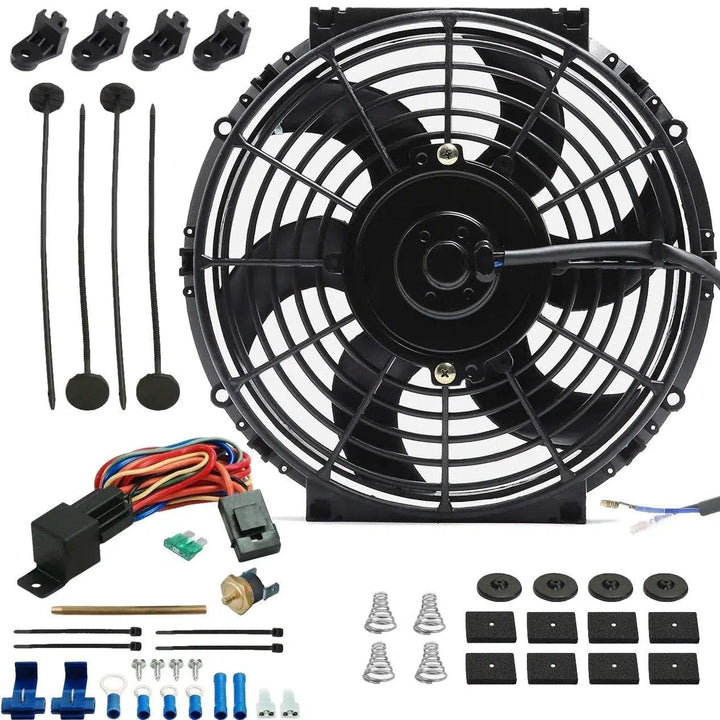

10-11 Inch 130w Electric Cooling Fan Push-In Radiator Fin Probe Switch Kit

SKU:
Availability : In Stock Pre order Out of stock

Electric Fan: Universal 12 volt high performance 10" inch slim electric cooling fan. Upgraded 130 watt motor draws...

$79.95
Order in the next [totalHours] hrs %M mins to get it between and

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

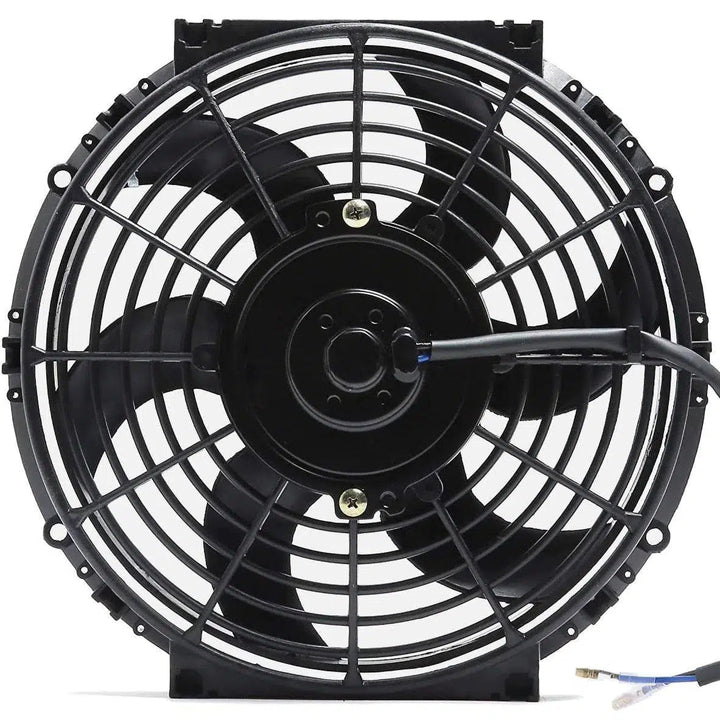

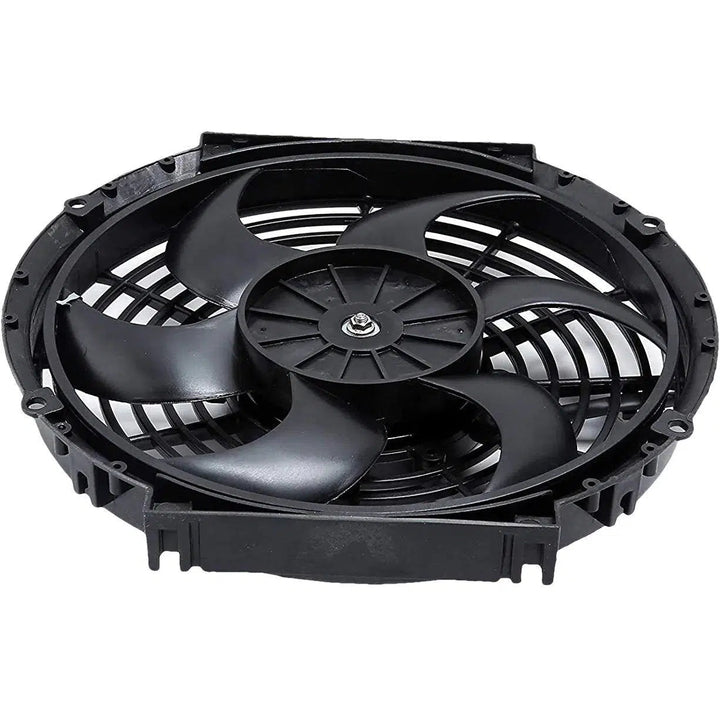

Electric Fan:

  • Universal 12 volt high performance 10" inch slim electric cooling fan.
  • Upgraded 130 watt motor draws 13 amps, producing over 2260 CFM.
  • Configured as an air puller by default or reversible to an air pusher.

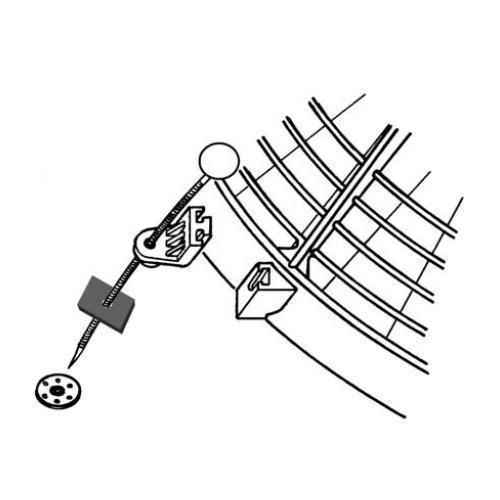

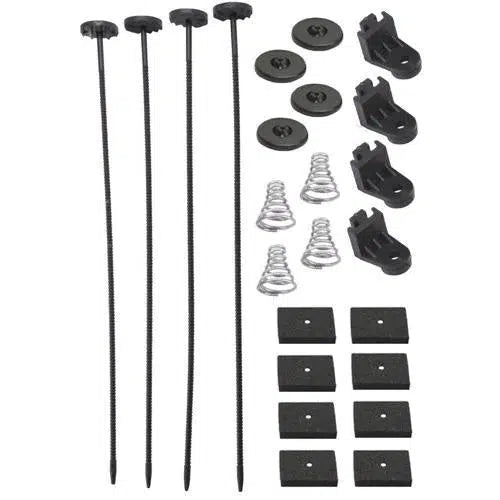

  • Includes mounting bracket feet and complete cooler fin tie strap kit.
  • Measures 11.5" x 10.75" x 3" thickness at center and 1.4" at edge.

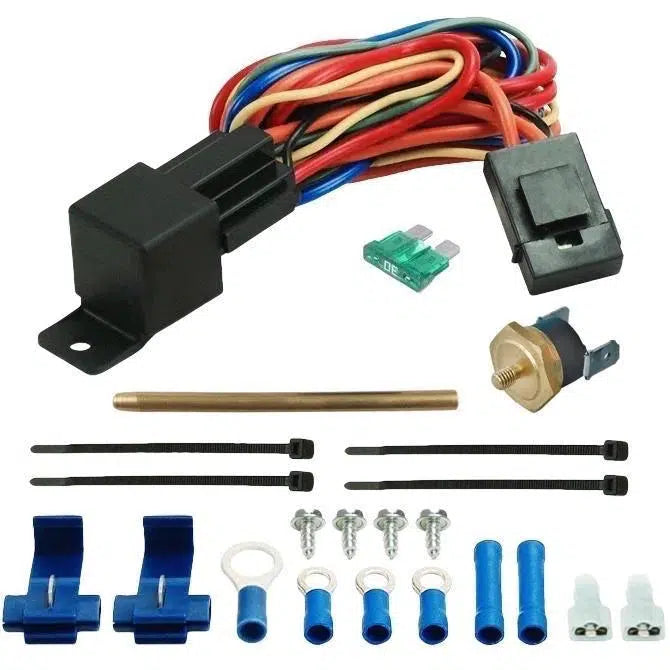

Wiring Kit:

  • Universal automotive electric fan 5-pin 40A relay switch harness kit.
  • 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
  • Maximum 30 amp continuous draw with 30A in-line fuse protection.
  • A/C override or manual toggle switch wire built directly into harness.
  • Installation instructions, wiring diagram and components included.

Thermostat:

  • Universal dual pin electric cooling fan powering thermostat switch.

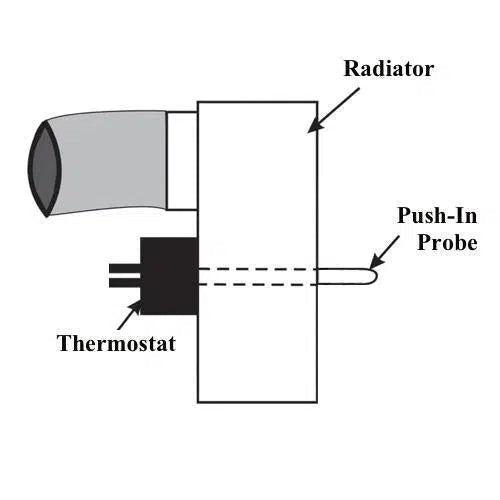

  • Modifiable 3" inch solid brass push-in fin probe temperature sensor.
  • Preset to power fan or 12v accessory at the selected temperature.
  • Probe pins the switch to radiator, engine or transmission cooler fins.
  • Measures temp of auto liquids including oil, water and coolant fluid.
