American Volt
ELECTRIC COOLING FANS
Upgraded larger motors now available.
6-7 INCH FANS
90W MOTOR
8-9 INCH FANS
90W MOTOR
10-11 INCH FANS
90W MOTOR
12-13 INCH FANS
90W OR 120W MOTOR
14-15 INCH FANS
120W OR 180W MOTOR
16-17 INCH FANS
130W OR 180W MOTOR
WHAT WILL FIT MY VEHICLE?
The products we sell are not application specific, but require mechanical or electrical knowledge for fitment.
WHAT SIZE FAN DO YOU RECOMMEND?
It's recommended to cover the most surface area on your radiator without over-hang.
HOW DO I REVERSE THE FAN DIRECTION?
To change from a puller to a pusher, flip the blade over and reverse the wiring.

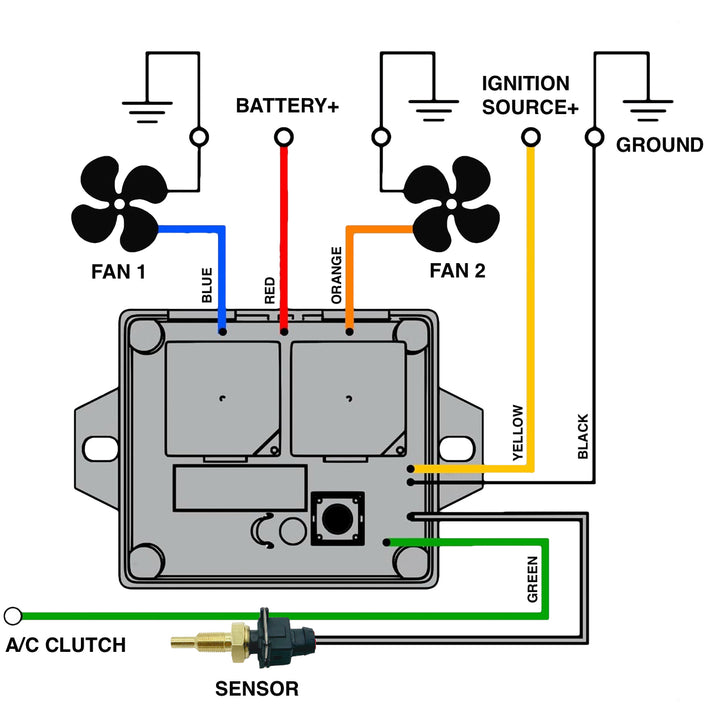

DUAL FAN WIRING KITS
Includes manual switch override wire.
SINGLE FAN WIRING KITS
Includes circuit breaker or in-line fuse.
FAN SWITCH OPTIONS

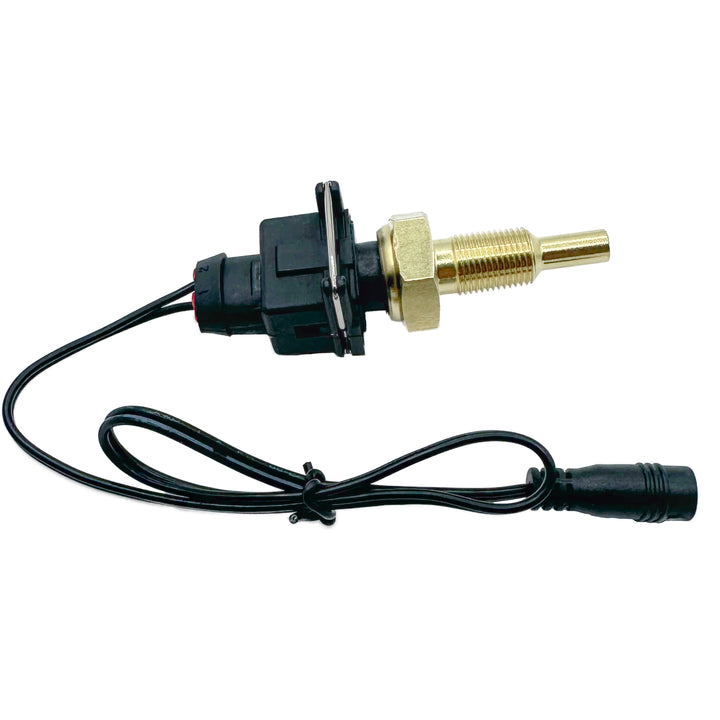

THREAD-IN GROUND THERMOSTAT
One piece long-style thermostats ground your fan at the turn-on temperature.
THREAD-IN POWER THERMOSTAT
Two piece short-style thermostats power to your fan at the turn-on temperature.
PUSH-IN POWER THERMOSTAT
Two piece push-in fin probe thermostats power fans at the set temperature.

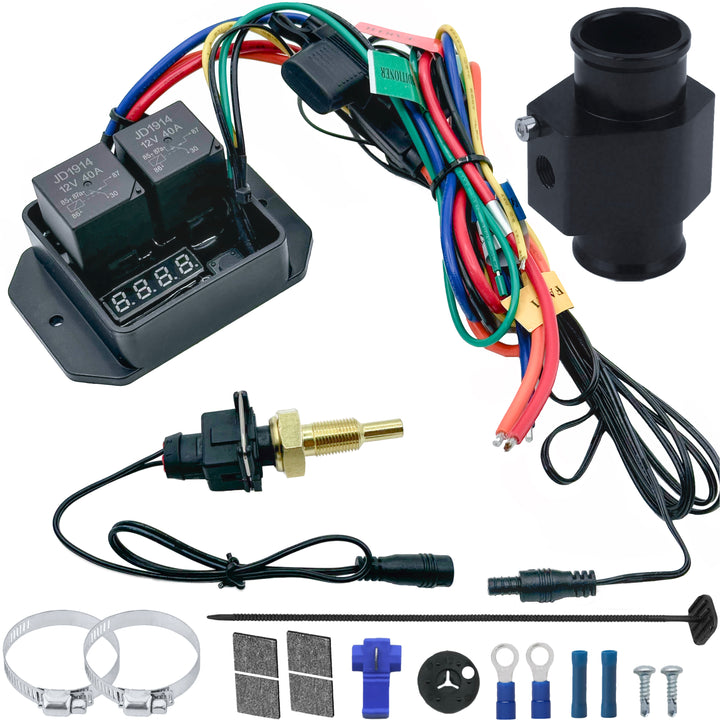

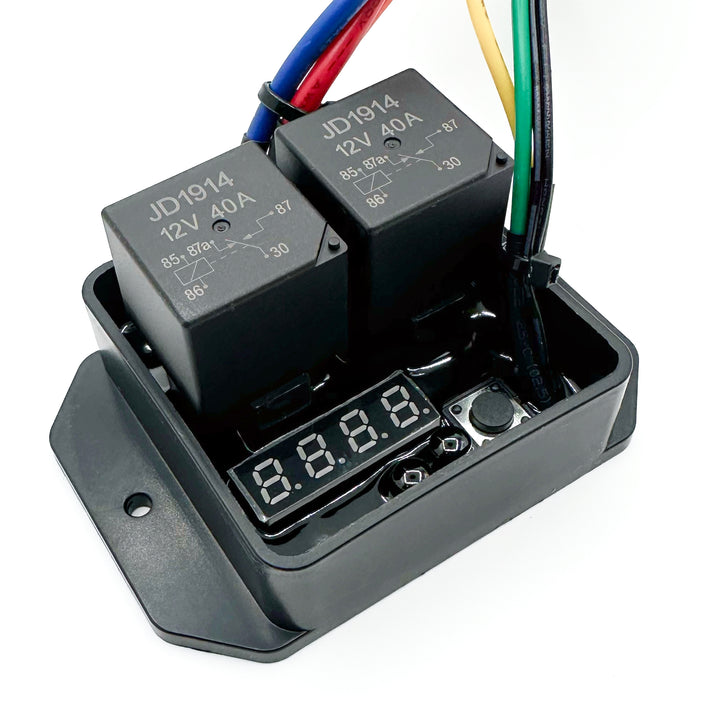

DIAL ADJUSTABLE THERMOSTAT
Adjustable thermostat probes cooler fins or water inlet tube and can activate between 32-250'F.

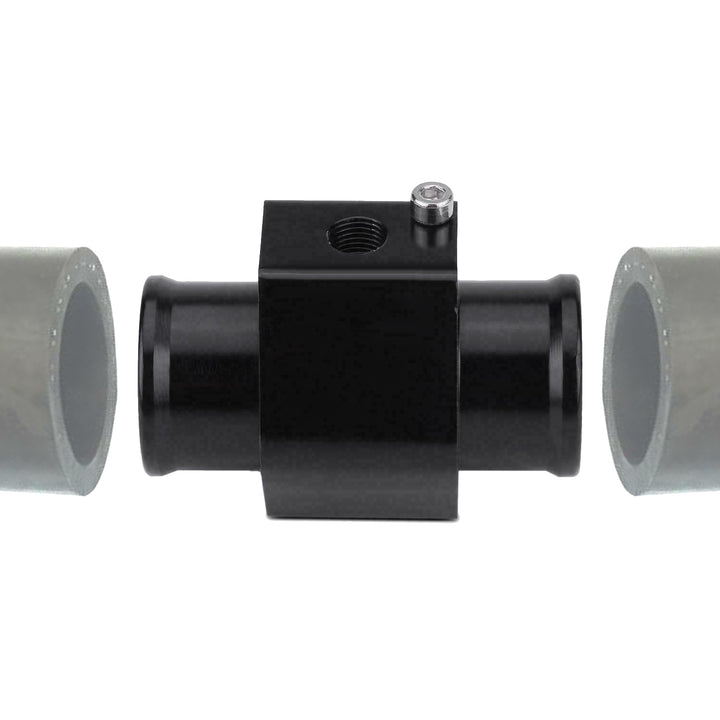

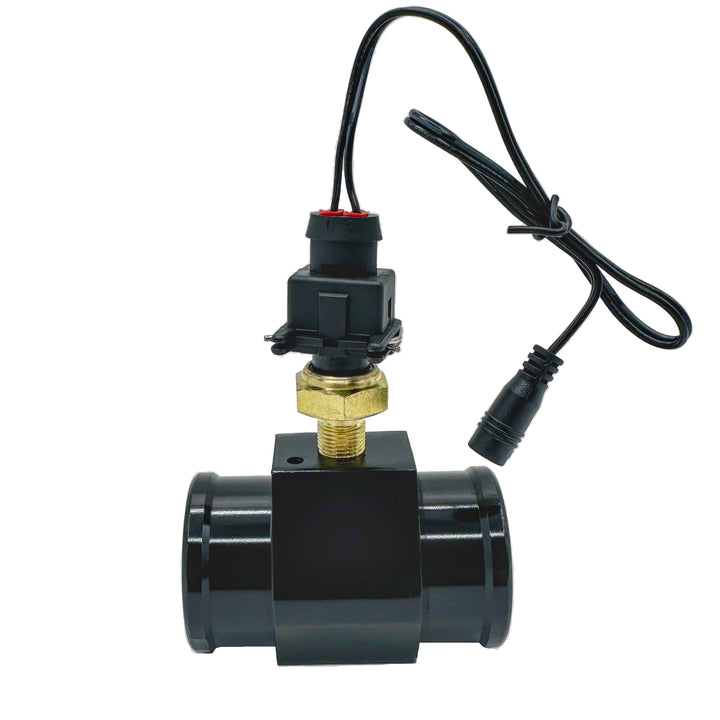

RADIATOR IN-HOSE THERMOSTAT
Radiator hose in-line thermostat measures any liquid temperature and grounds your fan.
OIL COOLER IN-HOSE THERMOSTAT
In-line oil cooler hose thermostat powers a fan or accessory at turn-on temperature.
OIL FILTER PLATE THERMOSTAT
Installs between engine block and oil filter. Measures oil temperature and grounds your fan.
MANUAL TOGGLE SWITCHES
Toggle switches allow manual control of an auto accessory or override a thermostat.
ELECTRIC FANS
The electric fans have high wattage motors to produce more performance level CFM air flow versus the competition.
THERMOSTATS
All thermostats have a variance of -/+3 degrees. We have a wide selection of probe sizes and temperature options available.
OIL COOLERS
Fluid coolers are available in various sizes and kits. Consult a professional to find the perfect setup for your project.
POWERING THERMOSTATS
Powers electric fan at turn-on temperature.
140'F TURN-ON
125'F TURN-OFF
160'F TURN-ON
145'F TURN-OFF
180'F TURN-ON
165'F TURN-OFF
190'F TURN-ON
175'F TURN-OFF
200'F TURN-ON
185'F TURN-OFF
210'F TURN-ON
195'F TURN-OFF
THERMOSTAT PROBE SIZES
Solid brass can be modified as needed.
1/8 INCH NPT
THREAD-IN
1/4 INCH NPT
THREAD-IN
3/8 INCH NPT
THREAD-IN
1/2 INCH NPT
THREAD-IN
2 INCH PROBE
PUSH-IN
3 INCH PROBE
PUSH-IN
GROUNDING THERMOSTATS
Grounds electric fan at turn-on temperature.
140'F TURN-ON
125'F TURN-OFF
160'F TURN-ON
145'F TURN-OFF
180'F TURN-ON
165'F TURN-OFF
190'F TURN-ON
175'F TURN-OFF
200'F TURN-ON
185'F TURN-OFF
210'F TURN-ON
195'F TURN-OFF
OIL COOLER IN-HOSE THERMOSTAT
Push-on ribbed hose lock design.
4AN HOSE FITTING
0.25" INCH HOSE ID
6AN HOSE FITTING
0.375" INCH HOSE ID
8AN HOSE FITTING
0.5" INCH HOSE ID
10AN HOSE FITTING
0.625" INCH HOSE ID
12AN HOSE FITTING
0.75" INCH HOSE ID
ENGINE & TRANSMISSION COOLERS
Paired with electric fans and thermostat kits.
6 ROW
TUBE & FIN 12.5"x7.5"x0.75"
6 ROW WIDE
TUBE & FIN 15.9"x7.5"x0.75"
8 ROW
TUBE & FIN 15.9"x10"x0.75"
17 ROW
PLATE & FIN 11"x7.5"x0.75"
23 ROW
PLATE & FIN 11"x9.5"x0.75"
30 ROW
PLATE & FIN 11"x11.6"x0.75"
13 ROW
STACKED PLATE 13.4"x8.4"x2"
15 ROW
STACKED PLATE 13.4"x9.4"x2"
19 ROW
STACKED PLATE 13"x6.6"x2"
25 ROW
STACKED PLATE 13"x8.2"x2"
30 ROW
STACKED PLATE 13"x9.8"x2"
34 ROW
STACKED PLATE 13"x10.9"x2"
