17 Row Engine Transmission Oil Cooler 6" Inch Electric Cooling Fan 12 Volt Red Toggle Switch Wiring Kit

SKU: AV-1677E-C62N/A

$99.95 $89.95

Shipping calculated at checkout.

Fluid Cooler: Universal 17 row plate and fin aluminum heavy duty transmission cooler kit. Extend transmission life by... Read more

Hose Size: 6AN

  • 6AN
Will not ship until [19041994]
Out of stock
Order in the next to get it between and hoursminutes

Fluid Cooler:

  • Universal 17 row plate and fin aluminum heavy duty transmission cooler kit.
  • Extend transmission life by helping prevent heat-related transmission failures.
  • Perfect for light to medium duty truck, car or RV use and occasional towing.
  • 7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.
  • Dimensions: 0.75" x 7.5" x 11" with 3/8" hose barb inlets, GVW 18000 lbs.

Electric Fan:

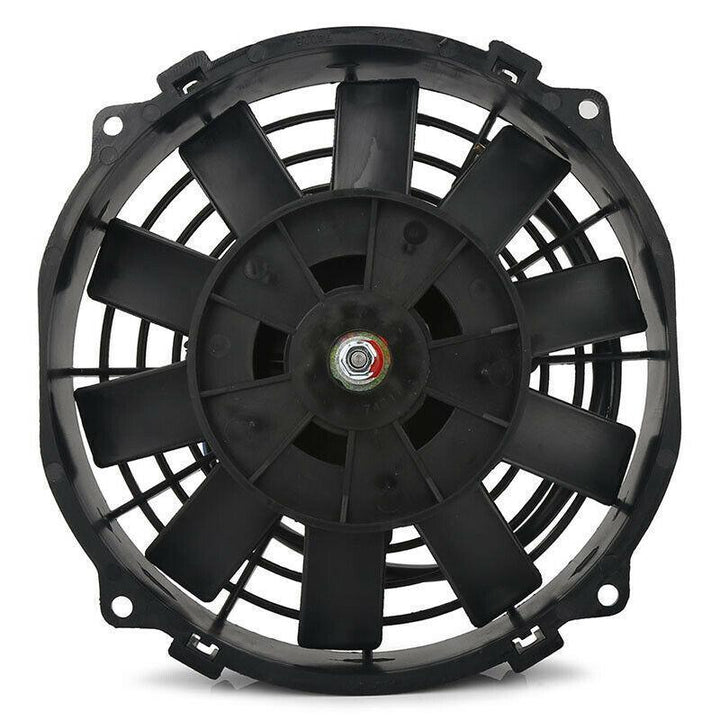

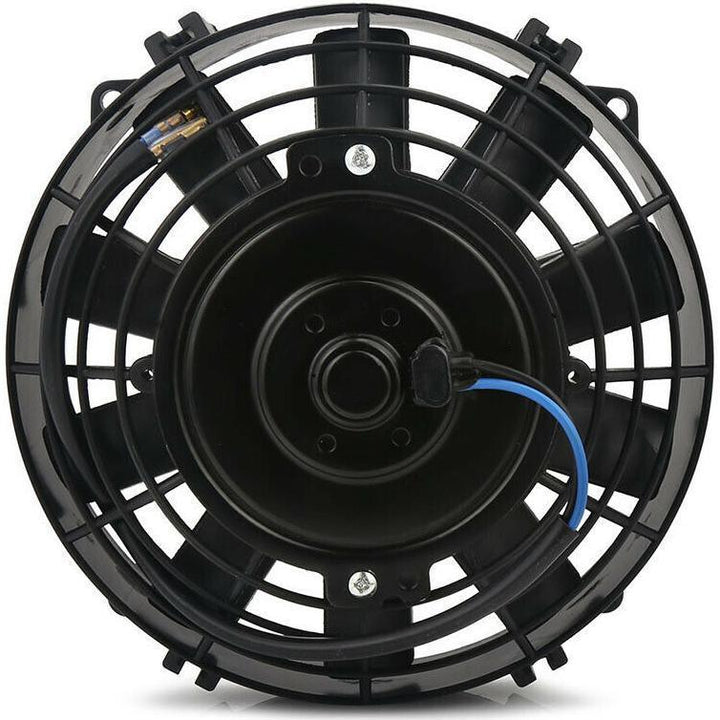

  • Universal 12 volt high performance 6" inch small electric cooling fan.
  • Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
  • Configured as an air puller to be on the inside and pull air through.

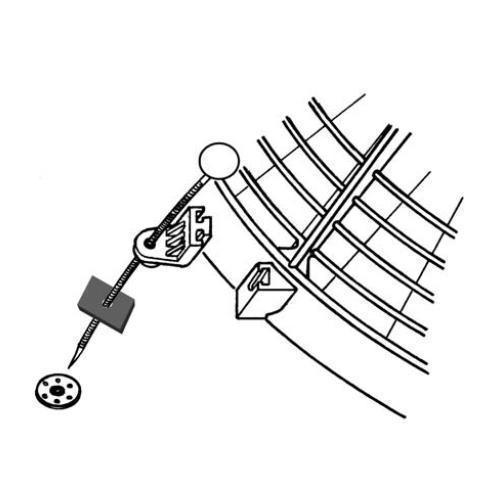

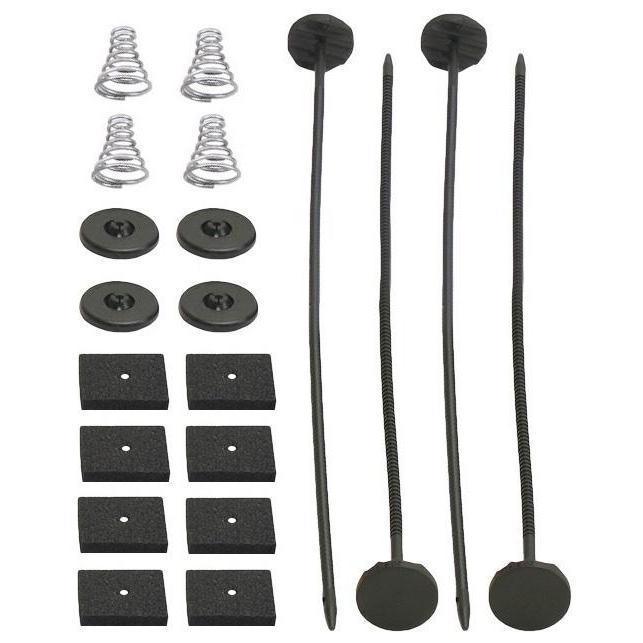

  • Includes mounting bracket feet and complete install fin tie strap kit.
  • Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.

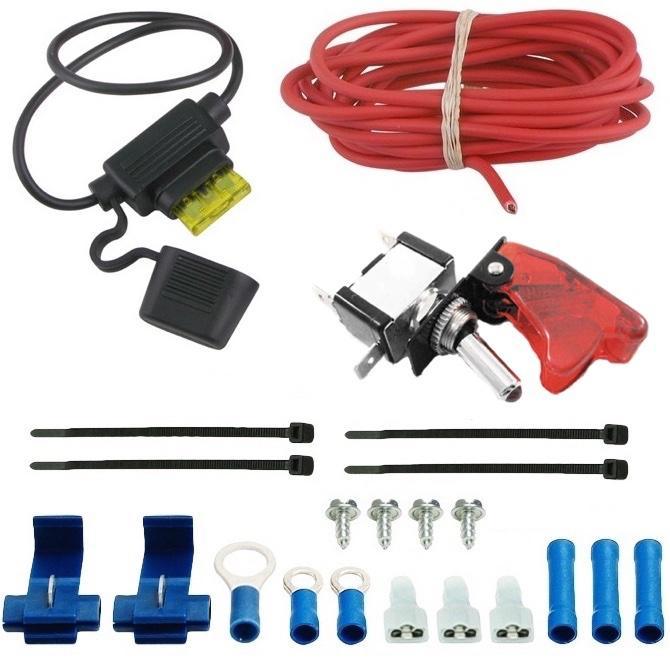

Wiring Kit:

  • Universal electric fan or automotive accessory wire harness kit.
  • Safely powers one 12 volt fan or auto accessory without splicing.

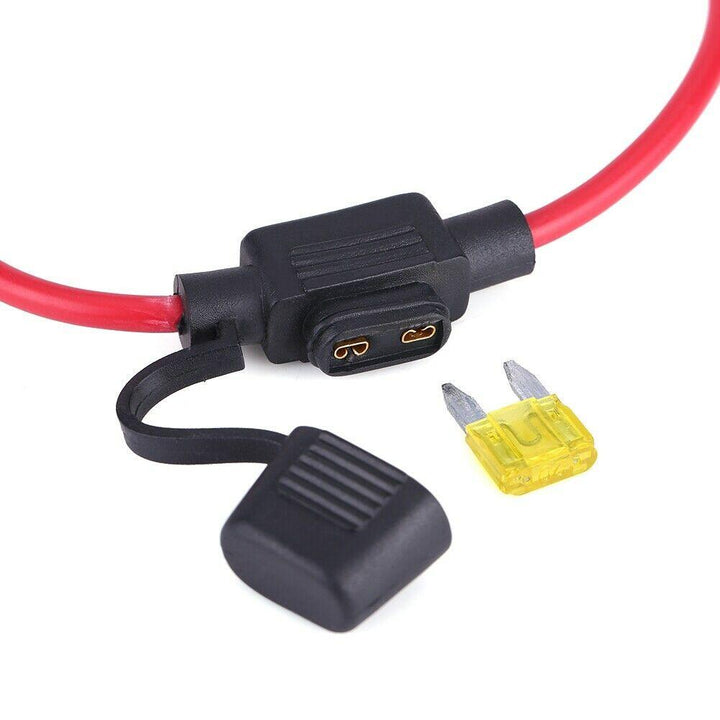

  • Maximum 20 amp continuous draw with in-line fuse protection.
  • Standard 7 feet of 14AWG size wiring allows mounting flexibility.
  • Installation instructions and all pictured components included.

NPT - American Standard Pipe Thread/Taper Guide:

NPT is not a measured size, but rather an industry call out size.
The NPT call out designation is not the true thread diameter inside or out.

PROBE SIZE

ACTUAL OUTSIDE DIAMETER (INCHES)

1/8" NPT 0.405" (Approx. 13/32")
1/4" NPT 0.540" (Approx. 1/2")
3/8" NPT 0.675" (Approx. 5/8")
1/2" NPT 0.840" (Approx. 7/8")

AN Fitting Size Guide:

The AN numbers refer to the tubing OD in sixteenths of an inch.

AN SIZE

MALE THREAD SIZE

TUBE SIZE (NOMINAL OD)
HOSE ID
4AN 7/16"-20 1/4" 0.22"
6AN 9/16"-18 3/8" 0.34"
8AN 3/4"-16 1/2" 0.44"
10AN 7/8"-14 5/8" 0.56"
12AN 1 1/16"-12 3/4" 0.69"
