34 Row Transmission Oil Cooler Electric Fan Adjustable Controller Kit

SKU:
Availability : In Stock Pre order Out of stock

Fluid Cooler: Universal 34 stacked plate aluminum heavy duty engine transmission cooler. Minimal pressure drop and to be...

$129.95

Hose Adapter Size: Choose an option

6AN
8AN
10AN
Description

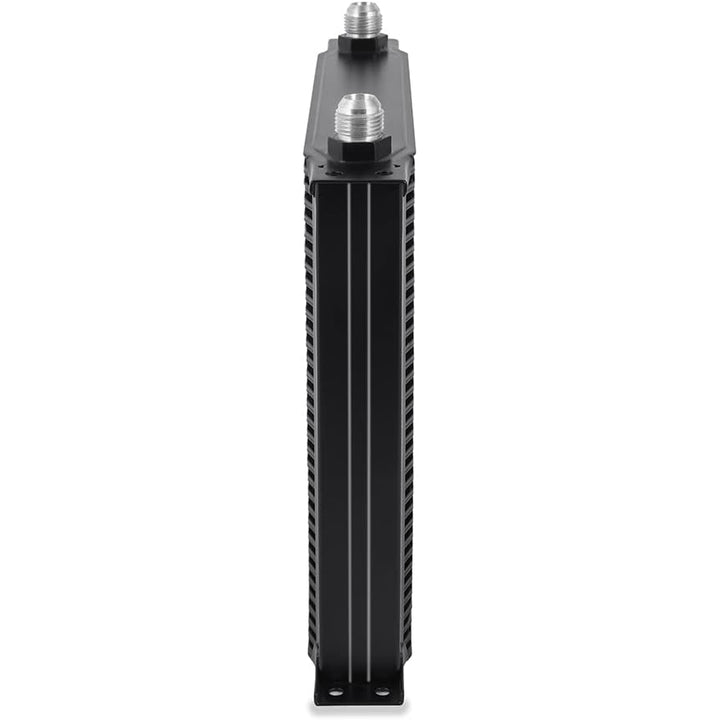

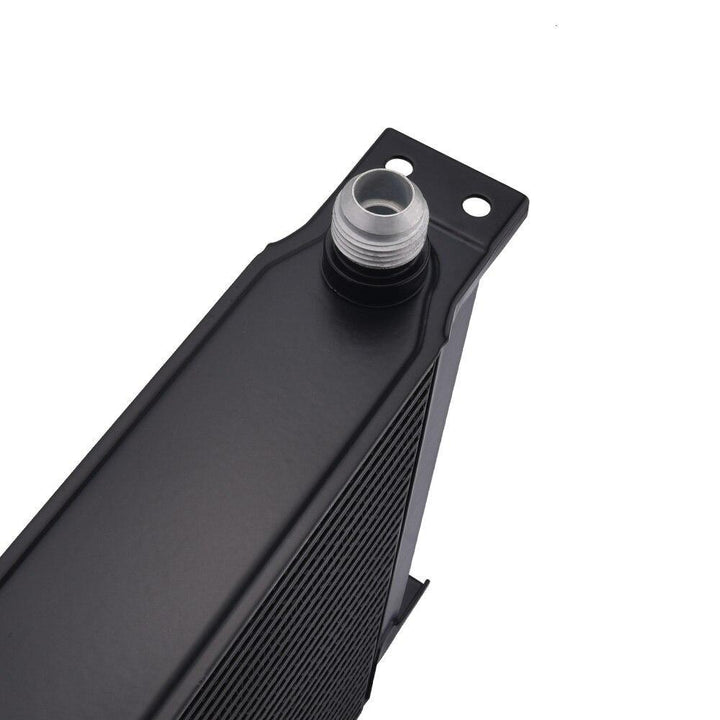

Fluid Cooler:

  • Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
  • Minimal pressure drop and to be used for engine, transmission or fuel cooling.
  • Furnace brazed aluminum construction with 4 integrated mounting brackets.
  • Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
  • Dimensions: 2" x 10.9" x 13" with AN hose fittings and 56000 BTU per hour.

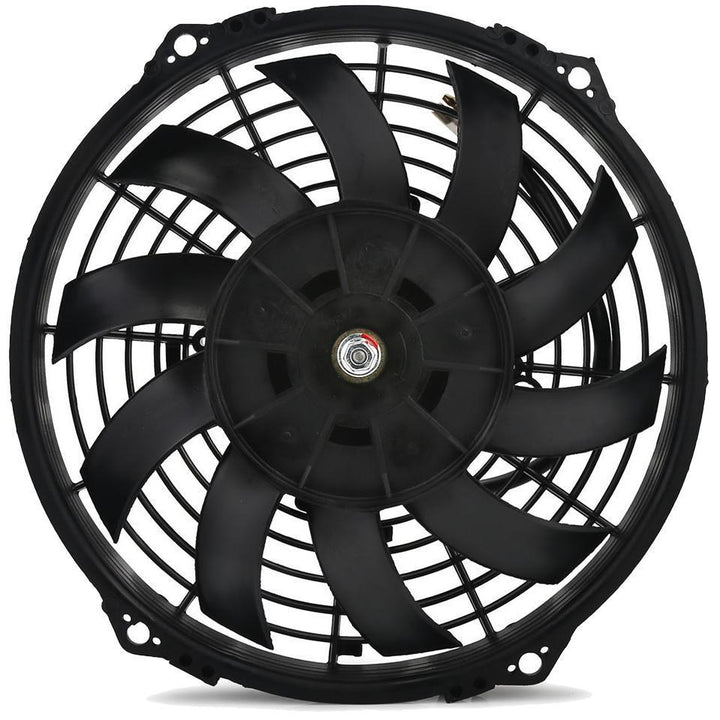

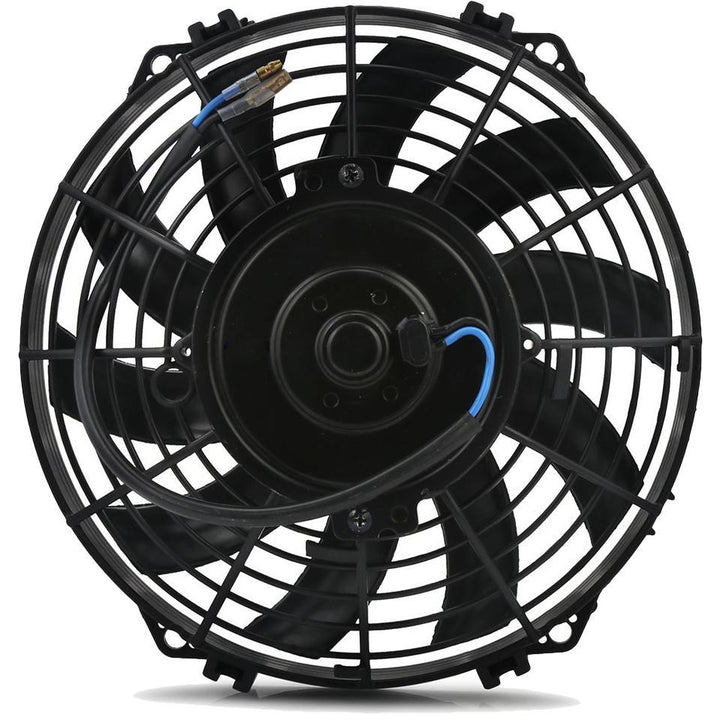

Electric Fan:

  • Universal 12 volt high performance 9" inch slim electric cooling fan.
  • Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
  • Configured as an air puller by default or reversible to an air pusher.
  • Includes mounting bracket feet and complete cooler fin tie strap kit.
  • Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

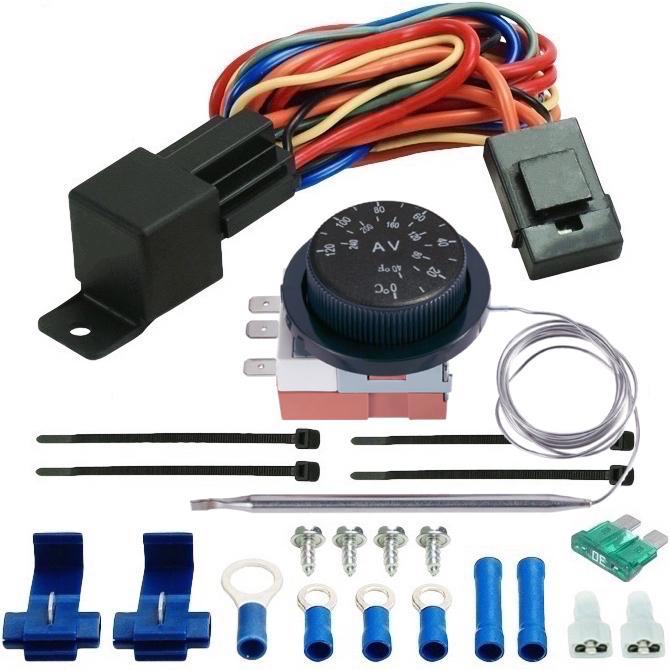

Wiring Kit:

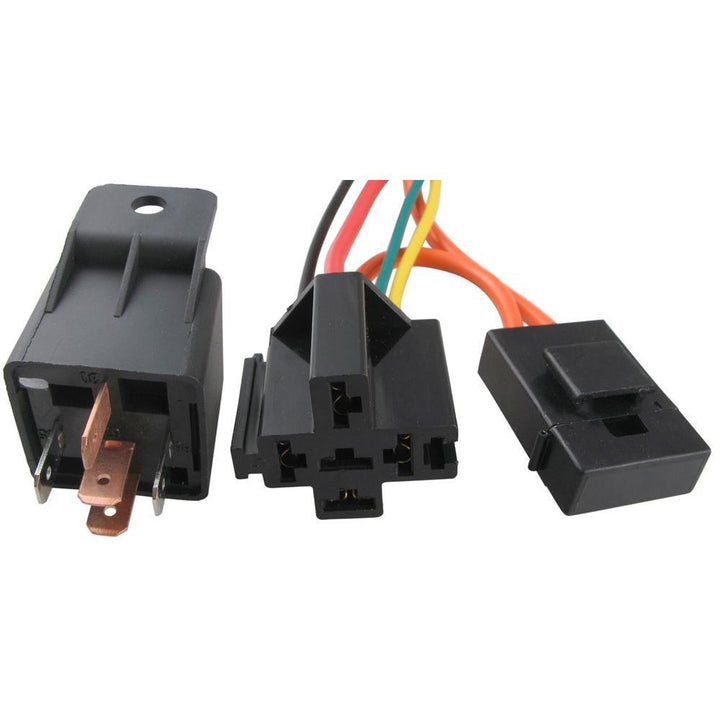

  • Universal automotive electric fan 5-pin 40A relay switch harness kit.
  • 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
  • Maximum 30 amp continuous draw with 30A in-line fuse protection.
  • A/C override or manual toggle switch wire built directly into harness.

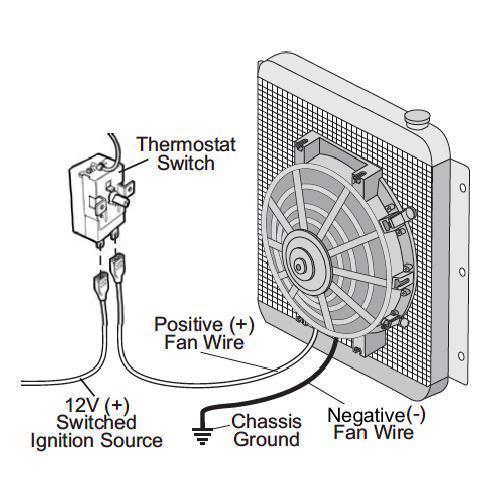

  • Installation instructions, wiring diagram and components included.

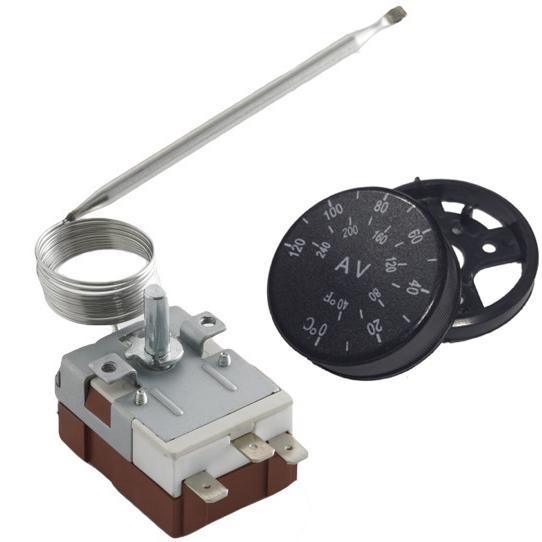

Thermostat:

  • Universal adjustable automotive electric fan thermostat switch sensor.
  • Turn-on range of 32-248'F with turn-off always set at 15 degrees less.
  • 3 pin design allows for wiring as a normally open or closed circuit.

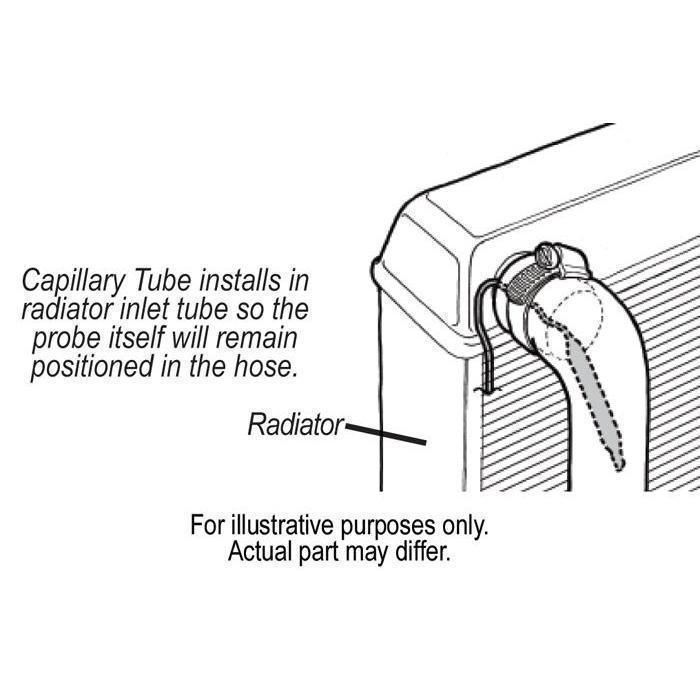

  • Probe pushes between radiator fins or inserts into coolant hose line.
  • Detailed install instructions, wiring diagram and hardware included.
