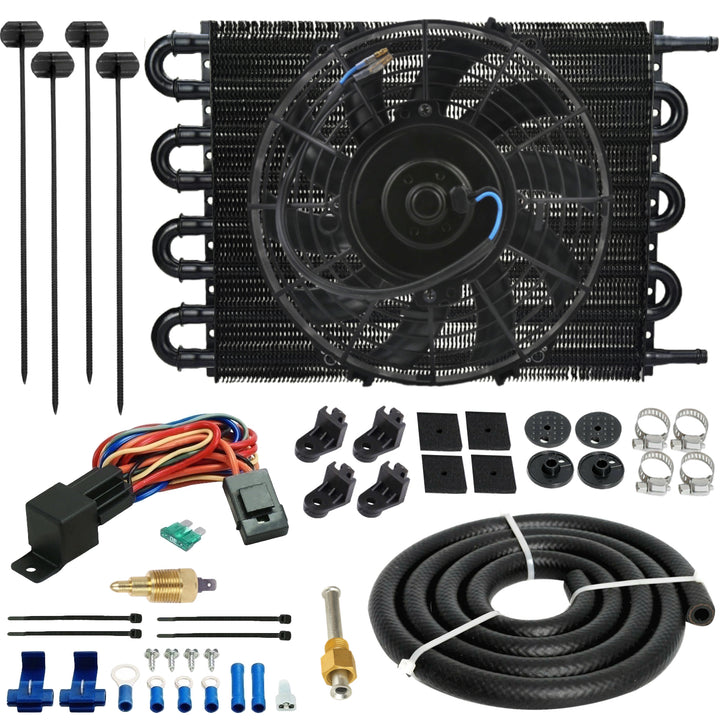

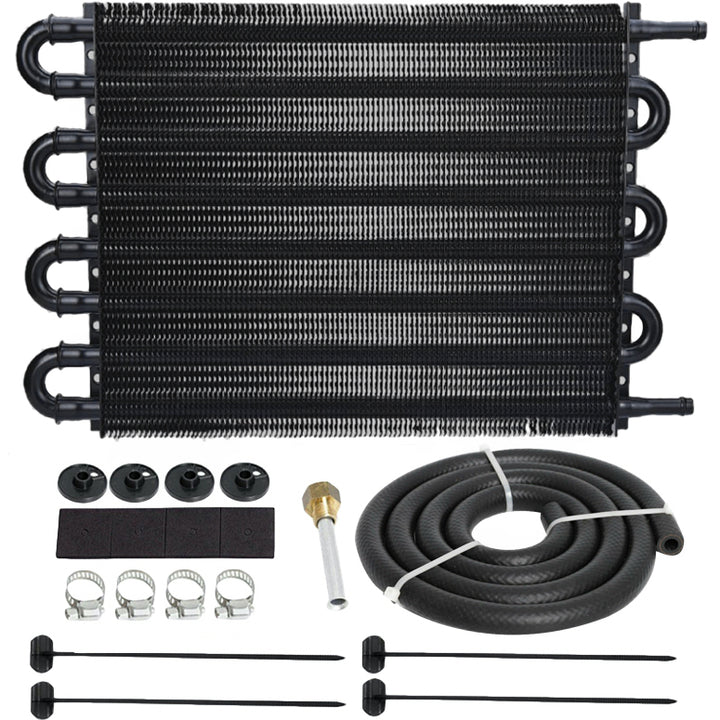

- Universal 8 row tube and fin all-aluminum heavy duty transmission cooler kit.
- Extend transmission life by helping prevent heat-related transmission failures.
- Perfect for highly-stress full-size car, truck and RV automatic transmissions.
- High efficiency turbulation and ultrasonically soldered for the best reliability.
- Dimensions: 0.75" x 10" x 15.87" with 3/8" hose barb inlets, GVW 26000 lbs.

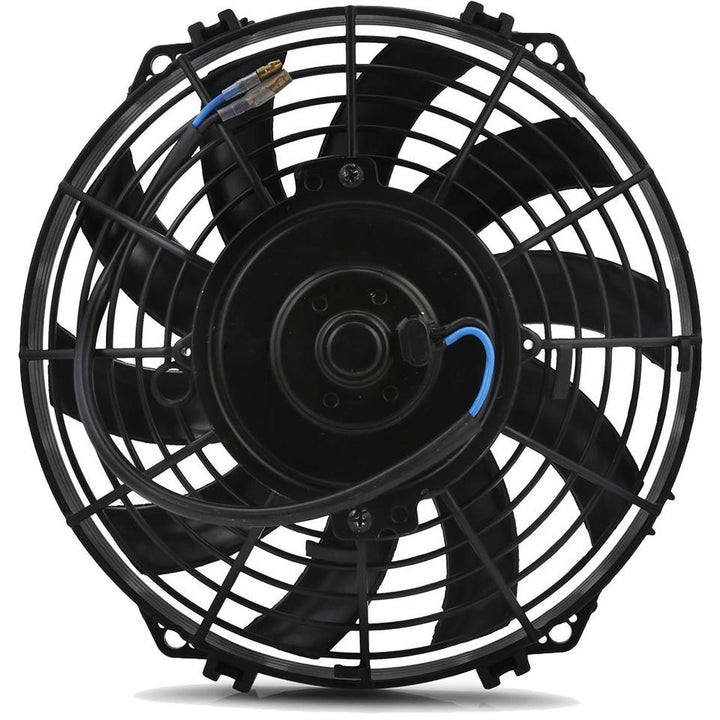

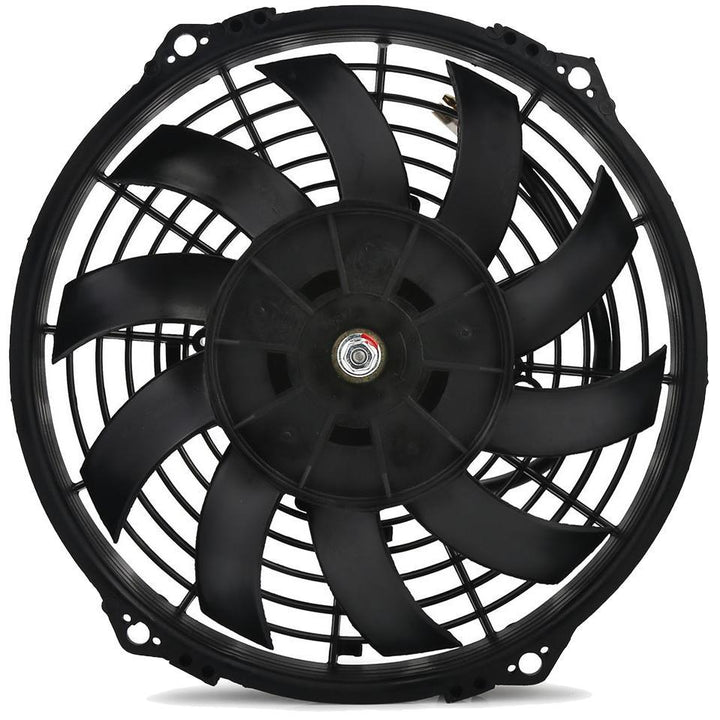

- Universal 12 volt high performance 9" inch slim electric cooling fan.
- Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
- Configured as an air puller by default or reversible to an air pusher.

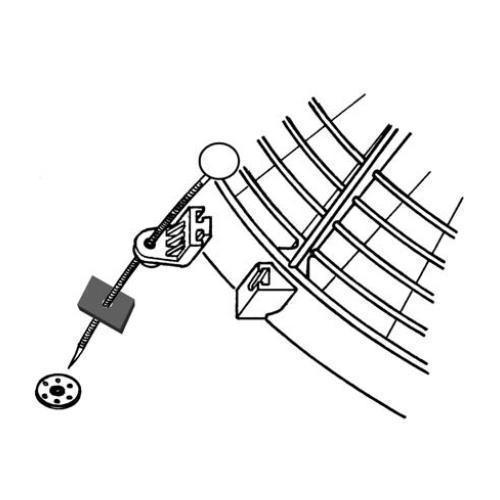

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

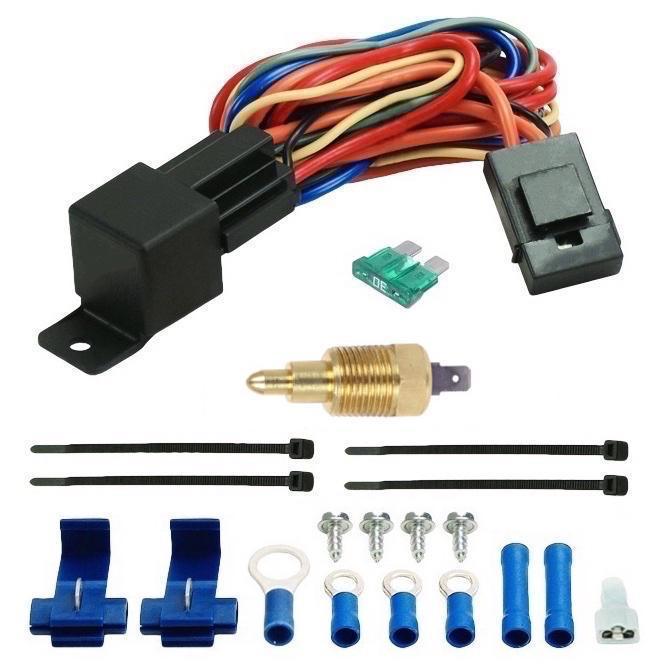

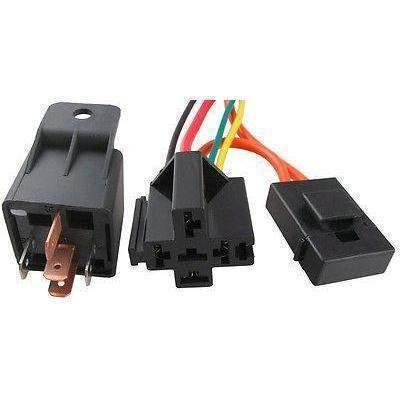

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.

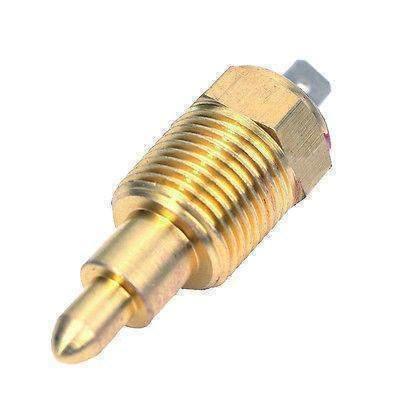

- Universal single pin electric cooling fan grounding thermostat switch.
- Standard NPT sized solid brass thread-in temperature probe sensor.
- Preset to power fan or 12v accessory at the selected temperature.
- Threads into block port, radiator, engine cooler or tapped hose line.
- Measures temp of any liquid including oil, water and coolant fluid.
