Dual 12-13" Inch 130w Electric Cooling Fans Radiator Hose In-Line Ground Thermostat Temp Switch Wiring Kit - American Volt
Dual 12-13" Inch 130w Electric Cooling Fans Radiator Hose In-Line Ground Thermostat Temp Switch Wiring Kit - American Volt

Dual 16-17 Inch 180w Electric Fan Radiator Hose Adapter Thermostat Switch Kit

SKU:
Availability : In Stock Pre order Out of stock

Electric Fan: 12 volt high performance 16-17 inch electric radiator cooling fan. Upgraded 180 watt motors draw 15...

$179.95

Hose Adapter Size: Choose an option

26mm / 1 Inch
28mm
30mm
32mm / 1.25 Inch
34mm
36mm
38mm / 1.5 Inch
40mm
42mm
44mm / 1.75 Inch
46mm
48mm
50mm / 2 Inch

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

Electric Fan:

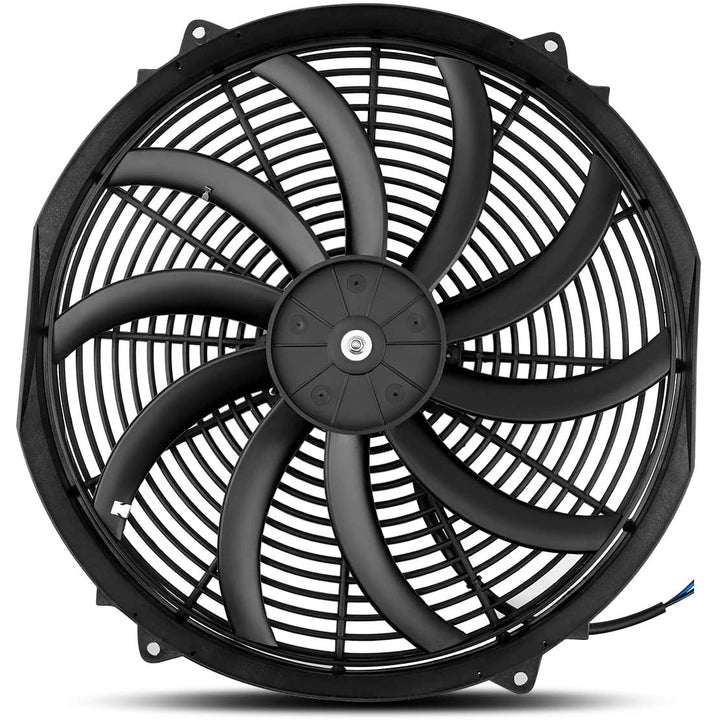

  • 12 volt high performance 16-17 inch electric radiator cooling fan.
  • Upgraded 180 watt motors draw 15 amps producing 3189 CFM.
  • Configured air pullers by default or reversible to be air pushers.
  • Includes mounting bracket feet and complete cooler tie strap kit.
  • Measures 16.75" x 16" x 4" thickness at center and 1.4" at edge.

      Wiring Kits:

      • Universal automotive 12v electric fan switch relay wire harnesses.
      • Safely powers one cooling fan or auto accessory without splicing.
      • Maximum continuous draw with 40 amp circuit breaker protection.
      • Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.
      • Installation wiring diagram and all pictured components included.

      Hose Adapter:

      • Universal radiator hose electric fan thermostat temperature sensor.
      • Anodized aluminum in-line fitting adapter in various diameter sizes.
      • Preset to ground fan or 12v accessory at the selected temperature.
      • Single pin 1/8" inch NPT brass thread-in probe grounding switch.
      • Measures temp of any liquid including oil, water and coolant fluid.
