Engine Transmission Cooler In-Line AN Inlet Hose Fitting Electric Fan Thermostat Temperature Switch

SKU:
Availability : In Stock Pre order Out of stock

Automotive oil cooler in-line hose fitting fan thermostat switch kit. Select the AN fitting size to thread directly onto the coolers inlet. Circuit...

$29.95 $27.95 SAVE 7%

Hose Fitting Size: Choose an option

Choose an option
4AN
6AN
8AN
10AN
12AN

Switch Temperature: Choose an option

Choose an option
140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Order in the next [totalHours] hours %M minutes to get it between and
Description

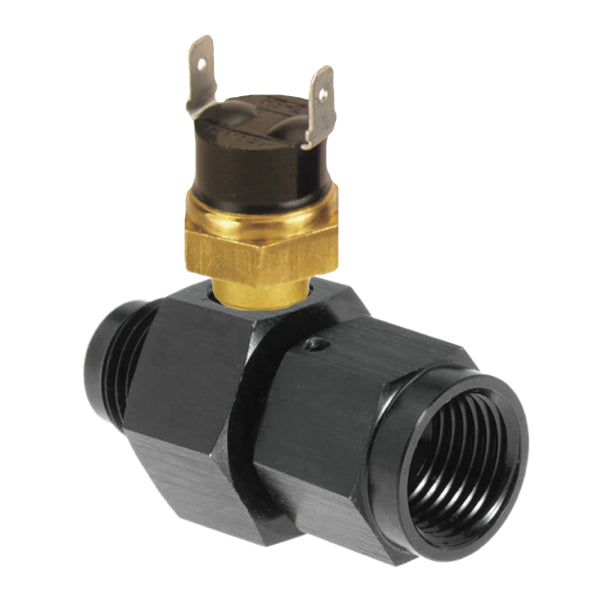

  • Automotive oil cooler in-line hose fitting fan thermostat switch kit.
  • Select the AN fitting size to thread directly onto the coolers inlet.
  • Circuit closes at selected temperature and powers 12V accessory.
  • Fitting is black anodized aluminum for a corrosion resistant design.
  • Measures all liquid temperatures including water, coolant and oil.
NPT Size Guide

NPT - American Standard Pipe Thread/Taper Guide:


NPT is not a measured size, but rather an industry call out size.
The NPT call out designation is not the true thread diameter inside or out.

PROBE THREAD SIZE

ACTUAL OUTSIDE DIAMETER

1/8" NPT 0.405" (Approx. 13/32")
1/4" NPT 0.540" (Approx. 1/2")
3/8" NPT 0.675" (Approx. 5/8")
1/2" NPT 0.840" (Approx. 7/8")
AN Size Guide

AN Fitting Size Guide:


The AN numbers refer to the tubing OD in sixteenths of an inch.

AN SIZE

MALE THREAD SIZE

TUBE SIZE (NOMINAL OD)
HOSE ID
4AN 7/16"-20 1/4" 0.22"
6AN 9/16"-18 3/8" 0.34"
8AN 3/4"-16 1/2" 0.44"
10AN 7/8"-14 5/8" 0.56"
12AN 1 1/16"-12 3/4" 0.69"
